SKU: ESVVR2000/1600

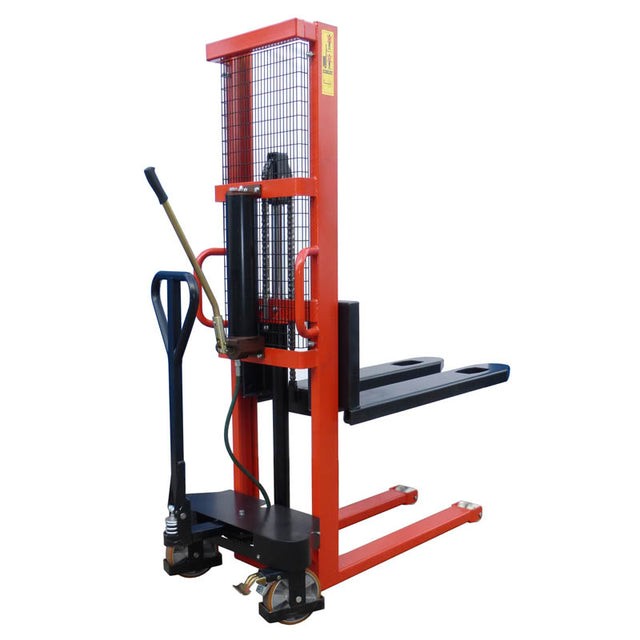

Heavy Duty Manual Pallet Stacker

£4,440.00 ex VAT
Free Delivery on all orders over £100+VAT within
U.K. Mainland (excludes Scottish Highlands & Conveyors)

Heavy duty manual pallet stacker fitted with chain link steering for easy operation and a safety valve which prevents overloading.

  • Max.lift height:  1600mm
  • Forks:  1150mm long x 545mm wide
  • Choice of capacities:  1200 kg, 1500 kg, 1800 kg and 2000 kg
Read Full Description
If you can’t find it, we’ll make it for you!

Need more information on this product or need something specific making? Call us on the number below or click on the the enquiry button to request a call.

0333 005 0323
Enquire About Product

Delivery and Shipping

Free Delivery on all orders over £100+VAT within U.K. Mainland (excluding Scottish Highlands and Northern Ireland). This excludes all Conveyor products which incur a delivery charge.

For all orders under £100 + VAT, there is a set charge of £10 + VAT.

For delivery outside the UK mainland or for Conveyor orders, please ring us on 0333 005 0323 to quote.

Some products are available on next day or overnight delivery, please ring us to enquire and we will do our best to get the order shipped out as soon as possible.

-

Product Details

  • A very robust heavy duty manual pallet stacker
  • Ergonomic pump handle
  • Separate tiller handle
  • Safety valve prevents overloading
  • Fitted with chain link steering for easy operation
  • Max. lift height: 1600mm
  • Forks: 1150mm x 545mm
  • Capacities: 1200 kg, 1500 kg, 1800 kg or 2000 kg
Technical Specifications:
Model ESVVR1200/1600 ESVVR1500/1600 ESVVR1800/1600 ESVVR2000/1600
Capacity 1200kg 1500kg 1800kg 2000kg
Load Centre 600 mm
Max. Lift Height 1600 mm
Lowered Fork Height 85 mm
Fork Length 1150 mm
Width over Forks 545 mm
Overall Length 1785 mm
Overall width 665 mm
Overall Closed Height 1970mm 2085mm 2190mm 2190mm
Wheels ø 200 Polyurethane / ø 80 mm Nylon
Approx. Weight 260kg 300kg 320kg 330kg
