SKU: ESMHDR1412

Heavy Duty Mammoth Racking- 1400mm x 900mm Platform

£187.93
Free Delivery on all orders over £100+VAT within
U.K. Mainland (excludes Scottish Highlands & Conveyors)

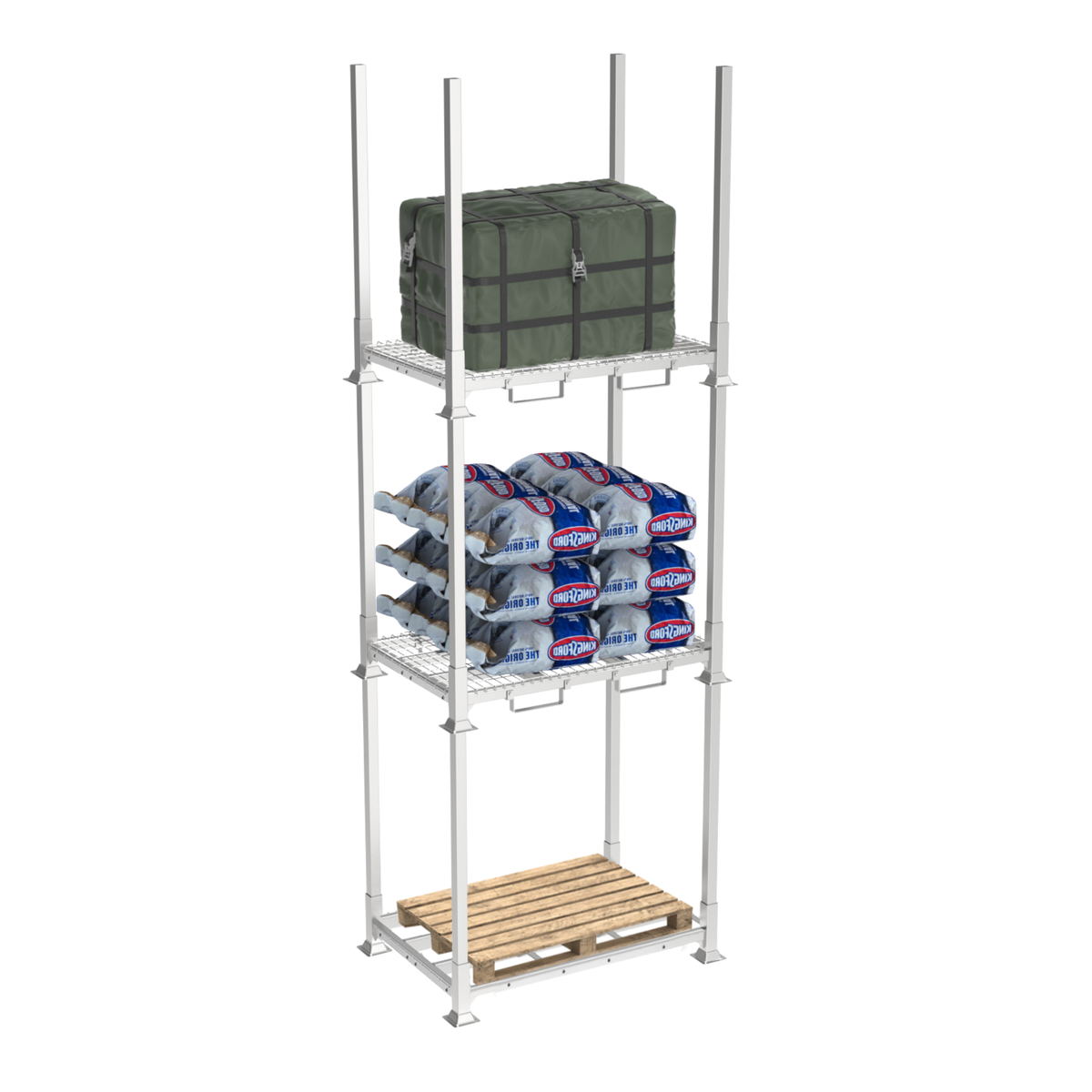

The Mammoth Racking Heavy Duty Storage Solution is a robust, galvanised steel design for demanding environments. With a 1500kg UDL capacity per level, they accommodate Euro, GKN, CHEP and UK pallets, offering excellent durability, weather resistance, and flexibility, with mesh decks available for non-palletised loads. 1400mm x 900mm Platform.

Minimum Order Quantity: 3

Read Full Description
If you can’t find it, we’ll make it for you!

If you require more information on this product or need a product customising to your exact requirements then call us on the number below or click on the enquiry button to request a call.

0333 005 0323
Request a Call

Delivery and Shipping

Free Delivery on all orders over £100+VAT within U.K. Mainland (excluding Scottish Highlands and Northern Ireland). This excludes all Conveyor products which incur a delivery charge.

For all orders under £100 + VAT, there is a set charge of £10 + VAT.

For delivery outside the UK mainland or for Conveyor orders, please ring us on 0333 005 0323 to quote.

Some products are available on next day or overnight delivery, please ring us to enquire and we will do our best to get the order shipped out as soon as possible.

-

Product Details

The Mammoth Racking Heavy Duty Storage Solution is a robust, galvanised steel design for demanding environments. With a 1500kg UDL capacity per level, they accommodate Euro, GKN, CHEP and UK pallets, offering excellent durability, weather resistance, and flexibility, with mesh decks available for non-palletised loads. 1400mm x 900mm Platform.

Minimum Order Quantity: 3

FEATURES

  • With a frame constructed from 12 Gauge rectangular Steel tubing, these heavy duty stillages can take up to 1500kg UDL per level
  • Exceptional weather resistance with a hot dipped galvanised finish
  • Accomodates all common pallet sizes

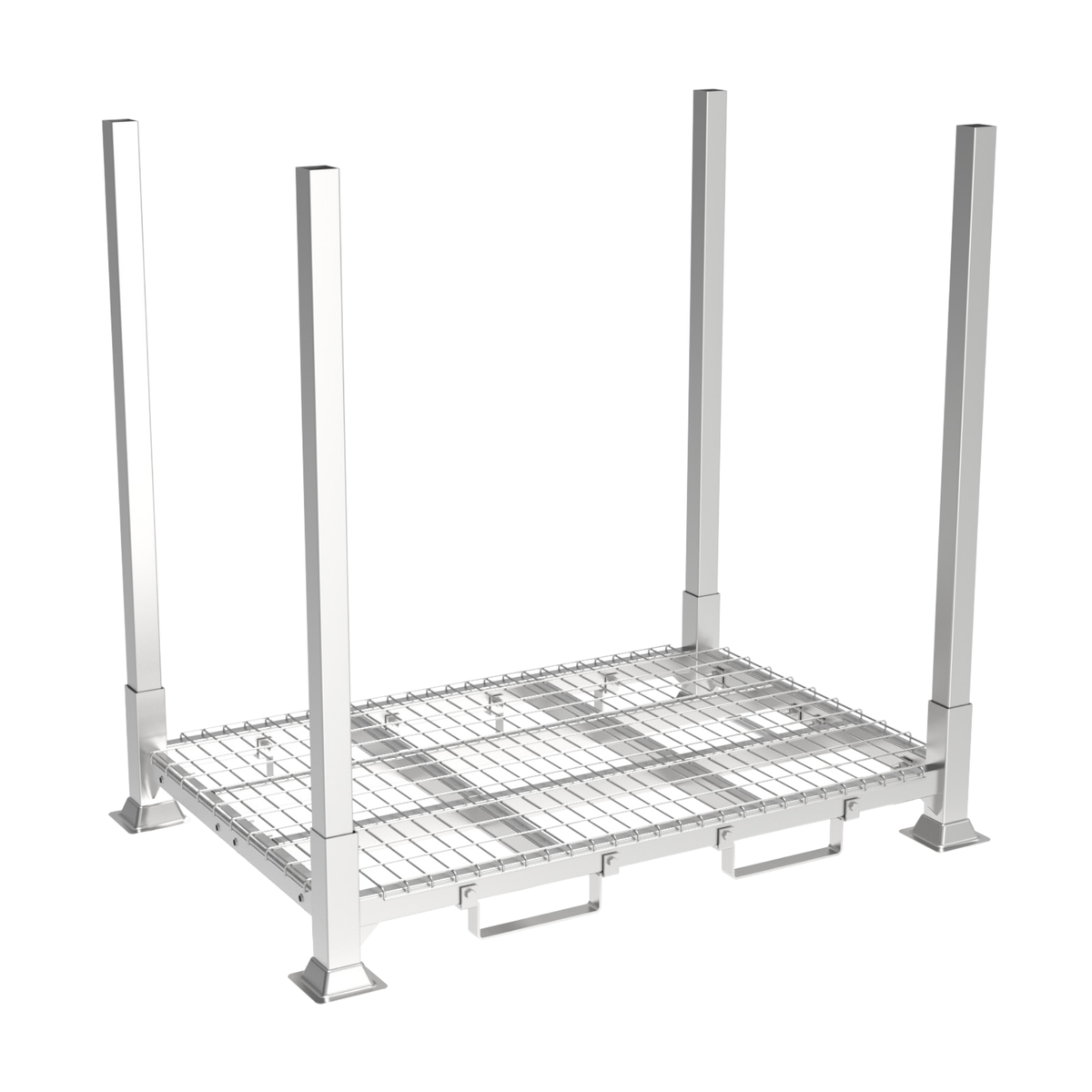

  • Mesh decks and fork pockets available
  • The ESMHDR14 Range allows for Euro & GKN/CHEP/UK pallet sizes, plus clearance
  • Stackable up to 6.8M high
  • 1200mm, 1500mm, 1800mm, and 2200mm Post options available to suit individual
    height requirements

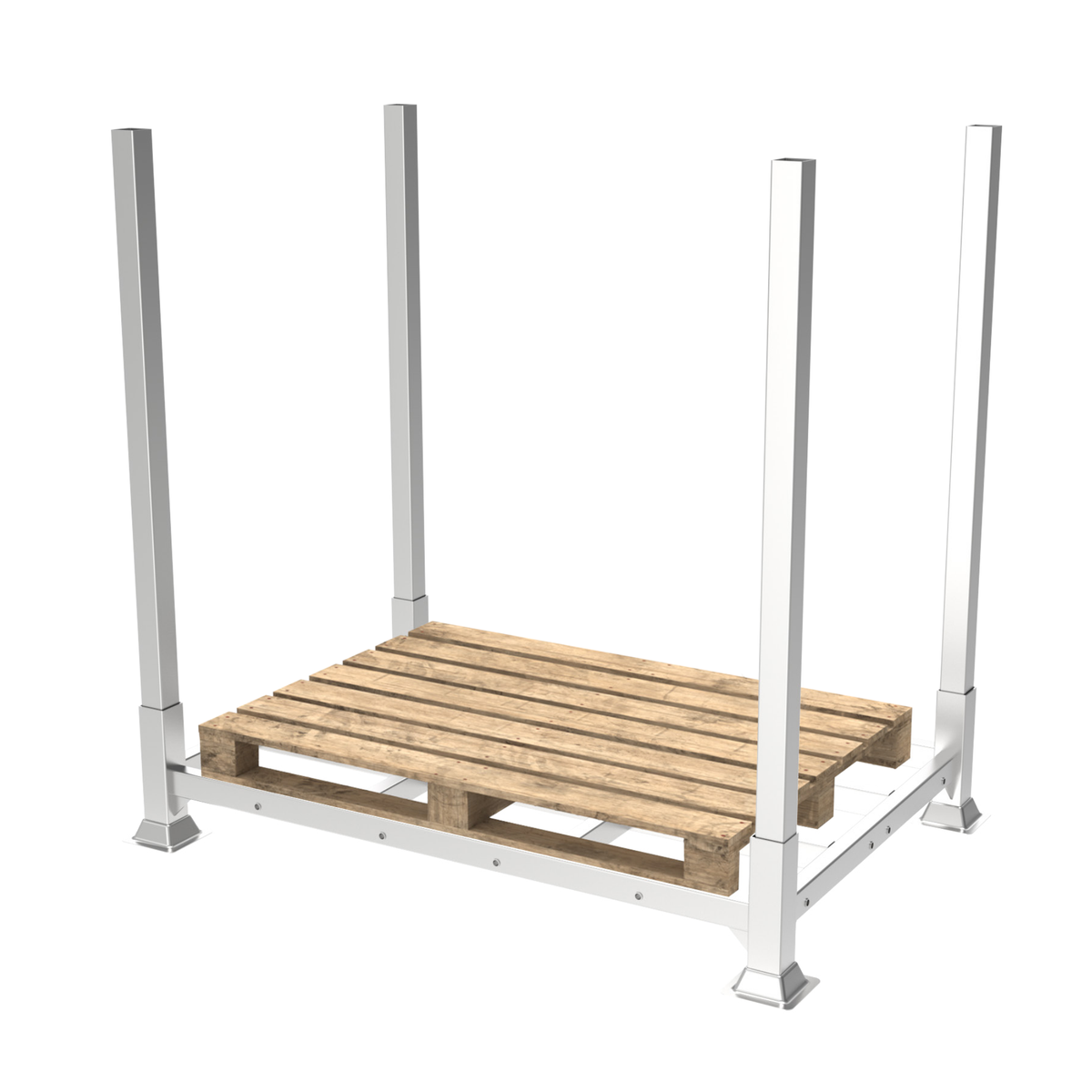

  • No Mesh Deck required when storing pallets
  • Fork pockets provide excellent guidance, and prevent lateral shifting when moving units

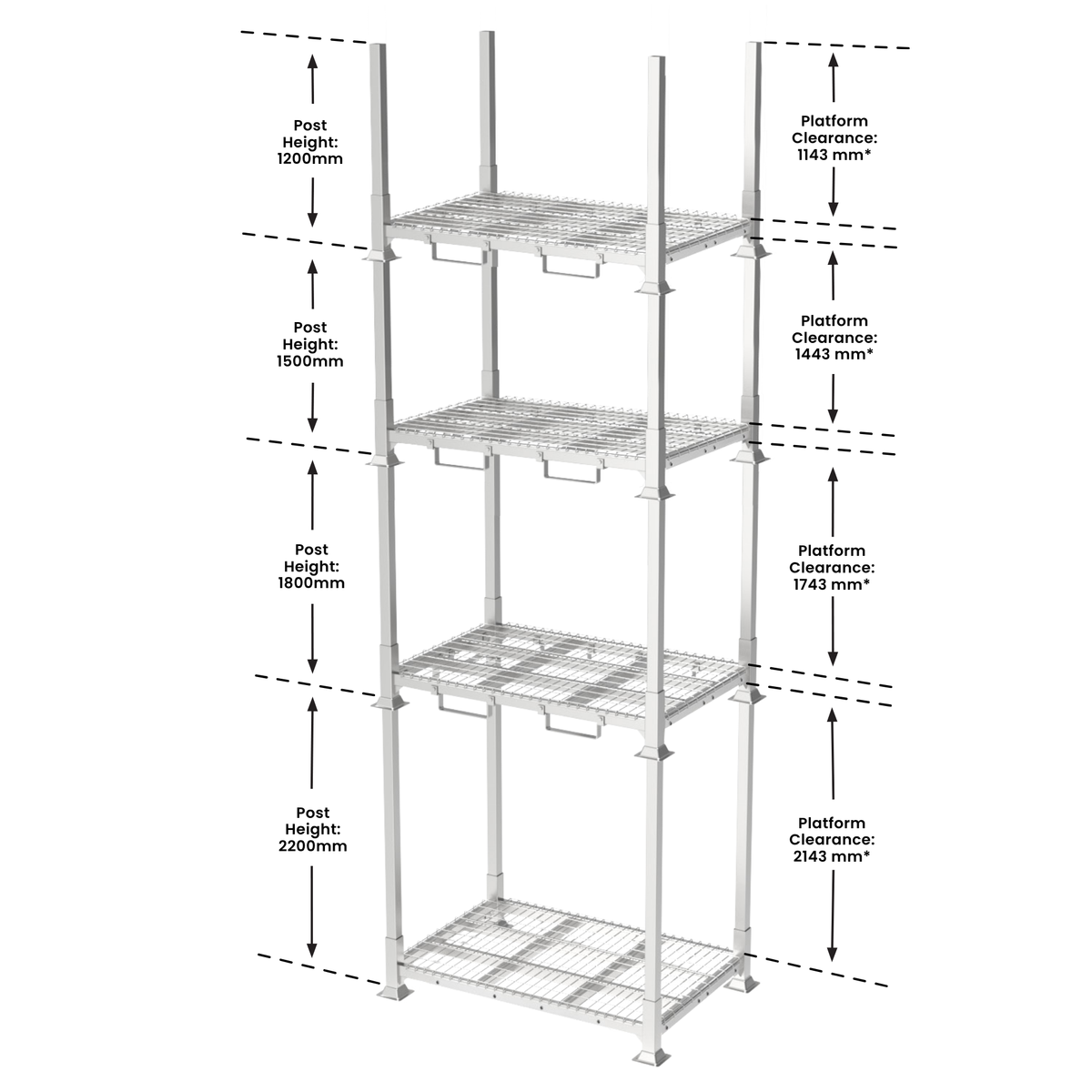

Description Platform Clearance (mm) Overall Size (H × W × D mm) Model
1200mm Post 1143* 1247 × 1620 × 1120 ESMHDR1412
1500mm Post 1443* 1547 × 1620 × 1120 ESMHDR1415
1800mm Post 1743* 1847 × 1620 × 1120 ESMHDR1418
2200mm Post 2143* 2247 × 1620 × 1120 ESMHDR1422
Mesh Deck** – 17.5 × 1524 × 1034 ESMHDR14_Deck
Fork Pocket Pair** – 86 × 358 × 40 ESMHDR_FP

*Please deduct a further 86mm for the Fork Pockets and/or 5mm for the Mesh Deck
N.B - Do not attempt to move the units once stacked
