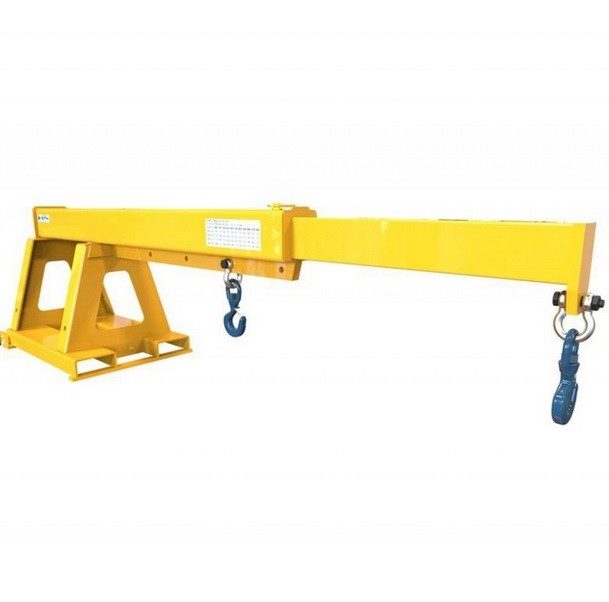

Extending High Lift Jib - Fork Mounted
Description
Description
Extending Forklift Jibs 1.5 to 5 tonnes and extendable up to 3m.
Our range of jib cranes for forklifts is second to none. Unloading containers, construction and maintenance are just some of the applications where forklifts need extra tools. Forklift mounted (and Carriage Mounted, click here to see them) jib attachments help execute tasks that forks on their own just can't handle. With this range of jibs you can easily handle load volumes of up to 2.4m in diameter and 6m in length with the right lifting equipment accessories. Ask us about these, we supply them too!

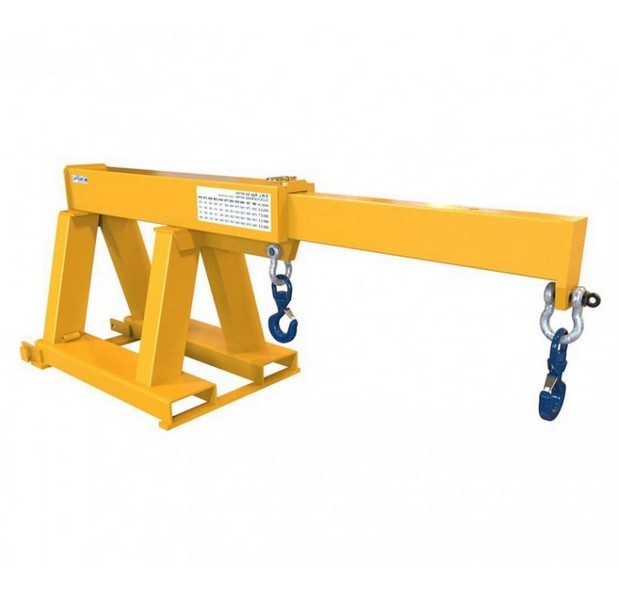

We have assembled a full range of extendable jib cranes up to 4 tonnes in two reaches: 1.75m and 3m. The 3m Jib Cranes are telescopic so they give you a manual facility that turns your forklift into a telehandler. See the tables below which provide you with overall technical dimensions. The table on the left shows the weights that can be lifted by the truck, which decline as you get further away from the design load centres, which you will find in the forklift truck handbook. We cover a 1.75m reaches for up to 4-tonne forklift trucks with a fixed jib and then to 3m on the bigger machines for which you would need up to 5-tonne machines. The design of these forklift attachments stools up the crane beam, which gives you up to around 900mm of useful extra height above your forklift forks height so you don't lose any headroom and in fact gain height of lift on the standard lift of your fork truck.
Here are some other useful features of the forklift jib:-
- The raised beam position improves the operator's visibility.
- We supply two hooks and shackles with the 3m lifts for stabilising loads if required.
- Jibs are matched to forklift truck capacities to help you manage the risk of overloading/ wear and tear.
- All our fork mounts are safely secured onto forks with heel retention pins positively locking the attachment to the forklift jib attachment.
- We have thought about the fork pockets too, easy access for a range of standard forks across the whole range.
- Complies with the latest Health & Safety Regulations.
- If you don't see exactly what you want, ask! We design and make these products. One of our field engineers will be happy to survey your application to ensure you get a perfect job.
- If in doubt please consult with your forklift truck manufacturer/dealer to establish if your forklift truck has enough lifting capacity when using the forklift jib
Dimensions:
