SKU: ESCFMS20H

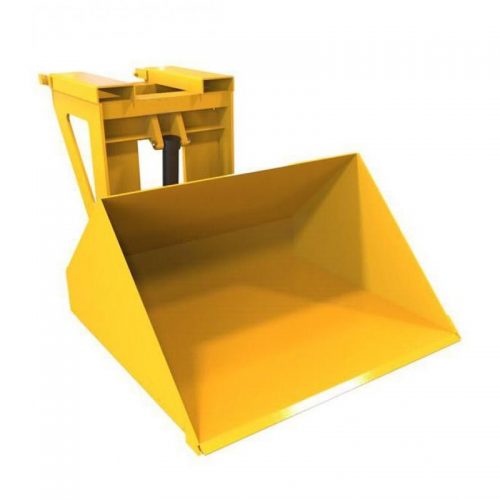

Easyfill Bucket Scoop - Hydraulic

£2,895.00 ex VAT
Free Delivery on all orders over £100+VAT within
U.K. Mainland (excludes Scottish Highlands & Conveyors)

Easyfill bucket scoop  with hydraulic operation which is able to be operated from within the forklift cab.  It requires an auxiliary hydraulic valve on the forklift truck.

  • Choice of 3 volume capacities:  0.2 cu.m, 0.4 cu.m. and 0.5 cu.m.
  • Max. fork size:  150 x 60mm
  • Fork spread:  894mm
Read Full Description

Need more information on this product? Call us on the number below or click on the the enquiry button to request a call.

0333 005 0323
Enquire About Product

Delivery and Shipping

Free Delivery on all orders over £100+VAT within U.K. Mainland (excluding Scottish Highlands and Northern Ireland). This excludes all Conveyor products which incur a delivery charge.

For all orders under £100 + VAT, there is a set charge of £10 + VAT.

For delivery outside the UK mainland or for Conveyor orders, please ring us on 0333 005 0323 to quote.

Some products are available on next day or overnight delivery, please ring us to enquire and we will do our best to get the order shipped out as soon as possible.

-

Product Details

This easyfill bucket scoop - hydraulic allows the scoop to be tipped and operated from within the forktruck cab which greatly speeds up operations and increases productivity

  • Available in 3 volume capacities: 0.2 cu.m, 0.4 cu.m and 0.5 cu.m
  • 0.2 cu.m. Min. truck capacity: 1500 kg. Bucket width: 800mm. Bucket height: 500mm. Centre of gravity: 500mm. Weight: 200 kg
  • 0.4 cu.m. Min. truck capacity: 20000 kg. Bucket width: 1000mm. Bucket height: 608mm. Centre of gravity: 660mm. Weight: 253 kg
  • 0.5 cu.m. Min. truck capacity: 20000 kg. Bucket width: 1250mm. Bucket height: 608mm. Centre of gravity: 660mm. Weight: 310 kg
  • Max. fork size: 150 x 60mm
  • Fork spread: 894mm
  • Requires an auxiliary hydraulic valve on the forklift truck to operate
  • The underslung design positions the bucket scoop close to the forklift allowing smaller forklifts with smaller lifting capacities to be used as the load centre (distance from the truck to the bucket scoop) is kept to a minimum
  • Fitted with heel pin retention
  • Supplied without hydraulic hoses
  • CE marked and supplied with a certificate of conformity
