SKU: ESCBJ2502000

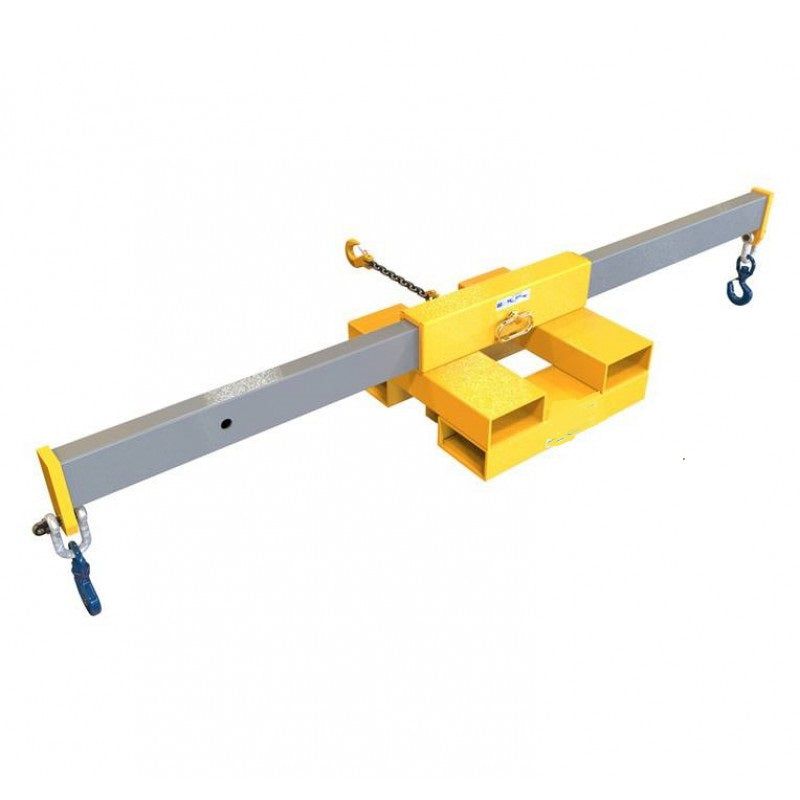

Cross Beam Jib

£1,380.00 ex VAT
Free Delivery on all orders over £100+VAT within
U.K. Mainland (excludes Scottish Highlands & Conveyors)

A cross beam jib which offers dual functions of supporting a load along the truck length like a standard jib or lifting a load at right angles to the truck like a spreader beam.

  • Capacity:   Jib position – 500 kg.  Beam position – 2000 kg
  • Load centre:  Jib position – 2000mm.  Beam position 250mm
  • Supplied with 2 hooks and shackles
Read Full Description
If you can’t find it, we’ll make it for you!

If you require more information on this product or need a product customising to your exact requirements then call us on the number below or click on the enquiry button to request a call.

0333 005 0323
Request a Call

Delivery and Shipping

Free Delivery on all orders over £100+VAT within U.K. Mainland (excluding Scottish Highlands and Northern Ireland). This excludes all Conveyor products which incur a delivery charge.

For all orders under £100 + VAT, there is a set charge of £10 + VAT.

For delivery outside the UK mainland or for Conveyor orders, please ring us on 0333 005 0323 to quote.

Some products are available on next day or overnight delivery, please ring us to enquire and we will do our best to get the order shipped out as soon as possible.

-

Product Details

  • When in the jib arm position, the lifting capacity of the beam is 500kg
  • When in the spreader beam position, the lifting capacity of the beam is 2000kg.
  • The beam length and width is 2000mm.
  • A safety chain secures the Cross Beam jib to the lift truck forks.
  • Supplied with two hooks and shackles.
  • Weight: 125 kg
  • Dual function for use as forklift jib or spreader beam making it flexible for different load handling requirements
  • Rated capacity 500kgs when in jib position and 2000kg when in spreader beam position
  • Safety securing chain to allow safe fastening to forklift truck
  • Long arm reach and spread making it suitable for handling long loads safely
  • Large fork pockets for instant 'drive in' fitting to lift truck, making it quick and simple to fit and remove from lift truck forks
  • 'CE' marked and supplied with Certificate of Conformity for Health & Safety Regulations
