SKU: ESTKG1VH

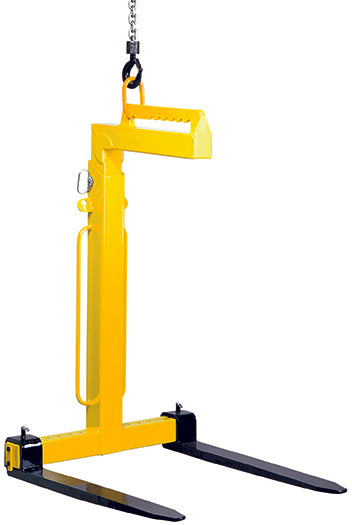

Crane Forks - Manual Balance

£1,352.27 ex VAT
Free Delivery on all orders over £100+VAT within
U.K. Mainland (excludes Scottish Highlands & Conveyors)

Crane forks with adjustable tines and an adjustable height mast.  The balancing system engages when the master link is hooked into the appropriate notch.

  • Capacities:  1000kg, 2000 kg, 3000kg or 5000 kg
  • The load must not exceed the fork length
  • Fork length: 1000mm
Read Full Description
If you can’t find it, we’ll make it for you!

If you require more information on this product or need a product customising to your exact requirements then call us on the number below or click on the enquiry button to request a call.

0333 005 0323
Request a Call

Delivery and Shipping

Free Delivery on all orders over £100+VAT within U.K. Mainland (excluding Scottish Highlands and Northern Ireland). This excludes all Conveyor products which incur a delivery charge.

For all orders under £100 + VAT, there is a set charge of £10 + VAT.

For delivery outside the UK mainland or for Conveyor orders, please ring us on 0333 005 0323 to quote.

Some products are available on next day or overnight delivery, please ring us to enquire and we will do our best to get the order shipped out as soon as possible.

-

Product Details

  • Crane forks with adjustable tines
  • Adjustable height mast
  • The balancing system engages when the master link is manually hooked into the appropriate notch
  • 4 working load limits available
  • The load must not exceed the fork length
WLL (kg) Adjustment of Tines Useable Height Fork Length Fork Section Overall Height Weight
0 - 1000 350-900mm 1100 - 1600mm 1000mm 100 x 30mm 1390 - 1890mm 130kg
0 - 2000 400-900mm 1300 - 2000mm 1000mm 120 x 40mm 1640 - 2340mm 200kg
0 - 3000 450-900mm 1300 - 2000mm 1000mm 120 x 50mm 1670 - 2370mm 250kg
0 - 5000 500-1000mm 1300 - 2000mm 1000mm 120 x 60mm 1700 - 2400mm 370kg
