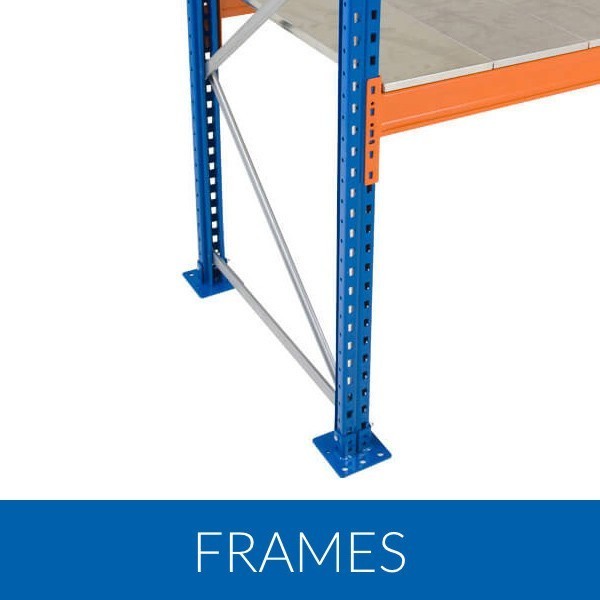

Pallet Racking Frames

From: £141.00

Pre-assembled racking frames compatible with beams available here. Supplied with floor fixings and levelling shims. Ideal for warehouses and factories. Price per one frame. Please add two to create a bay and one for each extension.

Product Details

Pre-built pallet racking frames to provide convenient access to stored pallets.

Beams are sold separately here.

  • Warehouse racking frames are delivered pre-assembled in order to provide quicker installation
  • Supplied with floor fixings and levelling shims
  • Two frames are required to install a starter bay and one for each extension bay
  • Hard-wearing powder coated blue finish- thus ensuring better wear & abrasion resistance
  • Enables ground level pallet storage as there is no need for bottom reinforcement
  • Complies with the latest safety regulations – all static calculations are made according to FEM 10.2.02
  • Features galvanised row spacers which add strength and stability to back-to-back racking bays

Guide to choosing the right size:

  • For U.K. pallets 1200mm wide x 1000mm deep (longer side facing the aisle)
    • Beams – 1350, 2700 or 3900mm long
    • Frames – 900mm deep
  • For Euro pallets 800mm wide x 1200mm deep (shorter side facing the aisle)
    • Beams – 950, 1850, 2700 or 3600mm long
    • Frames – 1100mm deep
  • For U.K. pallets 1000mm wide x 1200mm deep (shorter side facing the aisle)
    • Beams –  1150mm, 2250 or 3300mm long
    • Frames – 1100mm deep
  • Above sizes include 75mm clearance between adjacent pallets and pallet racking uprights

If you require custom designs please click here

*Please note that single bays and bays with one level are not advisable.

*Discounts are available for quantities of 6 and above – please ring us for details.
