Pallet Racking Beams

From: £59.00

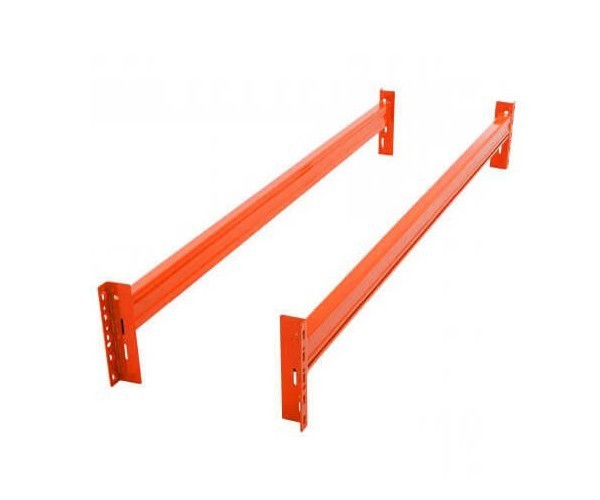

Pallet racking beams manufactured from box section steel. Supplied in pairs with safety locking pins. Available in 2 & 3 tonne capacity versions.

Product Details

Warehouse racking beams supplied in pairs in order to build a full warehouse racking system.

  • Racking beams with box construction – no inset step thus providing better rigidity
  • Manufactured according to European FEM standards
  • Supplied in pairs complete with safety locking pins

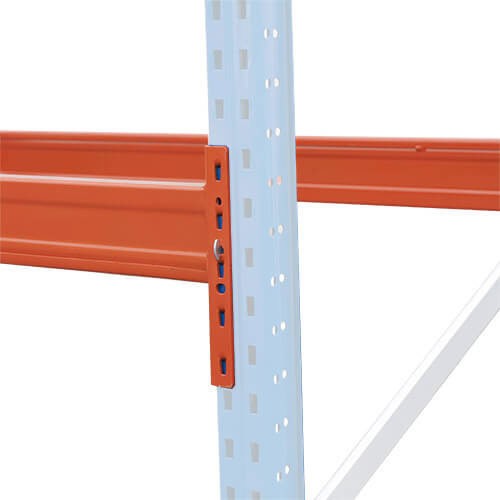

  • Compatible frames allow to adjust beams every 50mm
  • Available in 2 & 3 tonne capacity versions – shown capacities are the uniformly distributed load per pair
  • Compatible decking includes timber, chipboard, wire mesh and galvanised decks

    Compatible frames (to create a complete pallet racking kit):

    • 9 tonne frames can be purchased here
      • Allow for 4 x 2 tonne levels (8 tonnes overall) or 3 x 3 tonne levels (9 tonnes overall)
    • 12 tonne frames can be purchased here
      • Allow for 4 x 3 tonne levels or 6 x 2 tonne levels (12 tonnes overall)

Dimensions:

  • 2 tonne capacity beams:
    • 950mm long, section size: 80 x 40mm
    • 1150mm long, section size: 80 x 40mm
    • 1350mm long, section size: 80 x 40mm
    • 1850mm long, section size: 80 x 40mm
    • 2250mm long, section size: 85 x 40mm
    • 2700mm long, section size: 100 x 40mm
  • 3 tonne capacity beams:
    • 2700mm long, section size: 120 x 40mm
    • 3300mm long, section size: 135 x 50mm
    • 3600mm long, section size: 140 x 50mm
    • 3900mm long, section size: 140 x 50mm

Guide to choosing the right size pallet racking beams:

  • For U.K. pallets 1200mm wide x 1000mm deep (longer side facing the aisle)
    • Beams – 1350, 2700 or 3900mm long
    • Frames – 900mm deep
  • For Euro pallets 800mm wide x 1200mm deep (shorter side facing the aisle)
    • Beams – 950, 1850, 2700 or 3600mm long
    • Frames – 1100mm deep
  • For U.K. pallets 1000mm wide x 1200mm deep (shorter side facing the aisle)
    • Beams –  1150mm, 2250 or 3300mm long
    • Frames – 1100mm deep
  • Above sizes include 75mm clearance between adjacent pallets and pallet racking uprights

Frames are sold separately here

If you require custom designs for your shelving and racking please click here

*Please note that single bays and bays with one level are not advisable.

*Discounts are available for pairs of 6 and above – please call us for details.
