SKU: ES125GDH4NYBJ

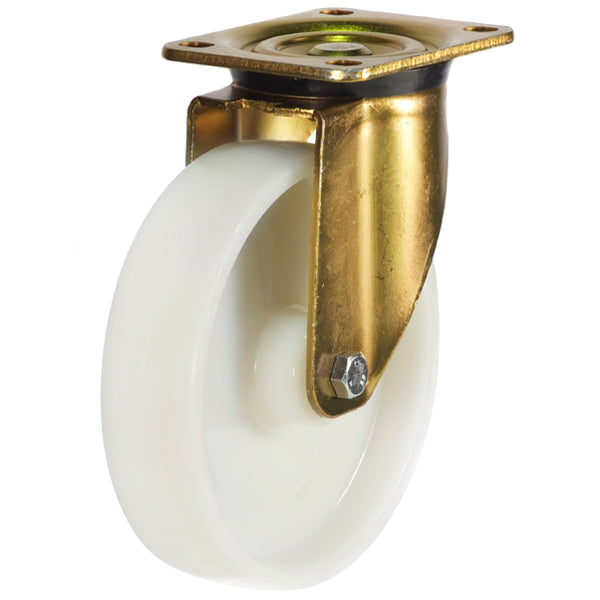

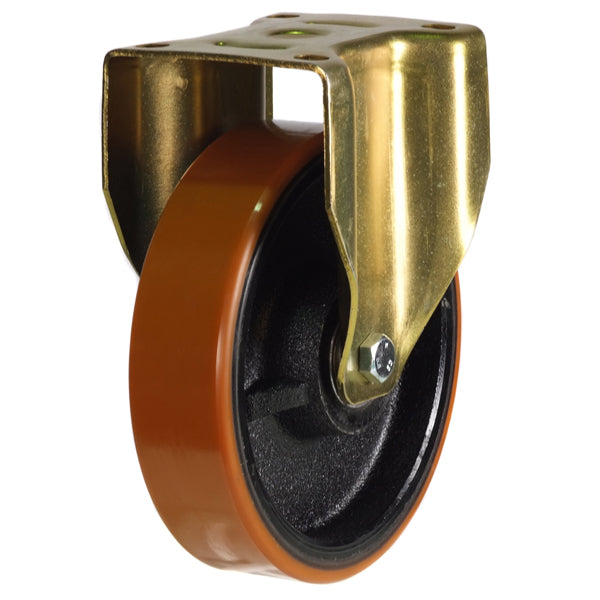

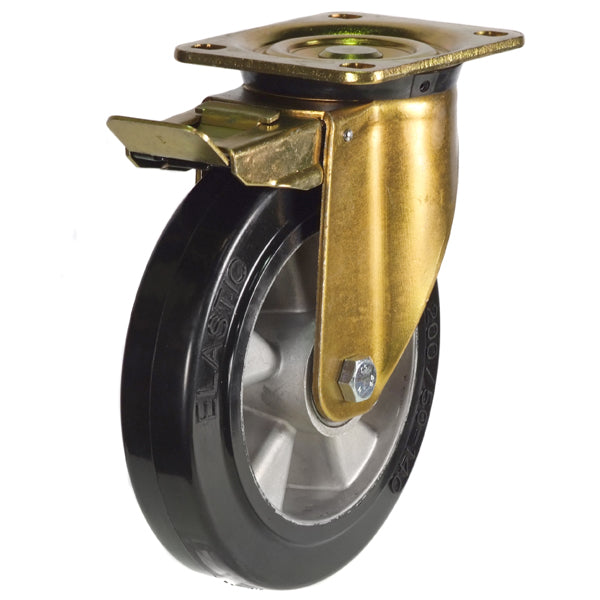

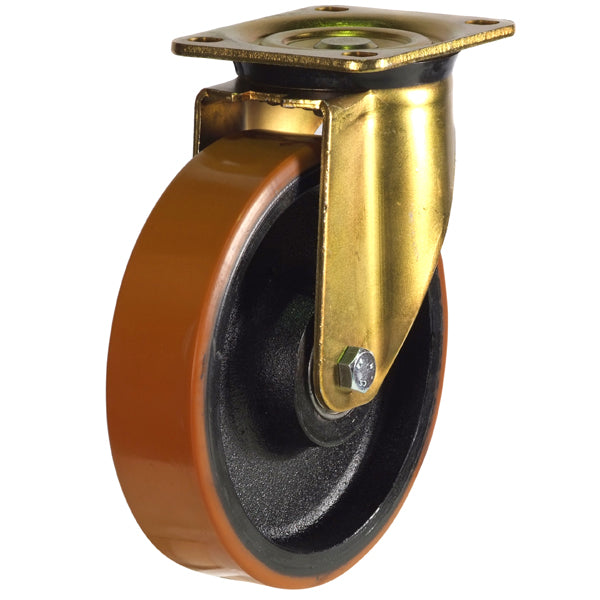

Heavy Duty Pressed Steel Castors

£47.75
Free Delivery on all orders over £100+VAT within
U.K. Mainland (excludes Scottish Highlands & Conveyors)


Heavy-duty pressed steel castors - robust plate housing, wheel sizes 100–150 mm, built for high loads and rough floors.

Read Full Description
If you can’t find it, we’ll make it for you!

If you require more information on this product or need a product customising to your exact requirements then call us on the number below or click on the enquiry button to request a call.

0333 005 0323
Request a Call

Delivery and Shipping

Free Delivery on all orders over £100+VAT within U.K. Mainland (excluding Scottish Highlands and Northern Ireland). This excludes all Conveyor products which incur a delivery charge.

For all orders under £100 + VAT, there is a set charge of £10 + VAT.

For delivery outside the UK mainland or for Conveyor orders, please ring us on 0333 005 0323 to quote.

Some products are available on next day or overnight delivery, please ring us to enquire and we will do our best to get the order shipped out as soon as possible.

-

Product Details

  • These heavy duty pressed steel castors are manufactured from heavy gauge zinc plated pressed steel
  • Robust range of castors are all fitted with double ball races & hardened steel tracks in the swivel heads
  • Suitable for power towing up to 6kph
  • Wheel sizes from 125mm to 200 mm
  • Load capacities from 300 kg to 800 kg
  • Plate dimensions:  135mm x 110mm
  • Bolt centres:  105mm x 80mm
  • Suits M12 bolts
  • Ball bearing
  • Choice of 4 wheel diameters:-
  • 125mm dia. Nylon. Tread width:  50mm.  Load capacity 800 kg.  Overall height: 166mm
  • 125mm dia. Rubber tyred. Tread width:  50mm.  Load capacity 300 kg.  Overall height: 166mm
  • 125mm dia. Polyurethane. Tread width:  50mm.  Load capacity 550 kg.  Overall height: 166mm
  • 150mm dia. Nylon. Tread width:  45mm.  Load capacity 700 kg.  Overall height: 194mm
  • 150mm dia. Polyurethane. Tread width:  50mm.  Load capacity 800 kg.  Overall height: 194mm
  • 160mm dia. Rubber tyred. Tread width:  50mm.  Load capacity 350 kg.  Overall height: 199mm
  • 200mm dia. Nylon. Tread width:  50mm.  Load capacity 800 kg.  Overall height: 239mm
  • 200mm dia. Rubber tyred. Tread width:  50mm.  Load capacity 450 kg.  Overall height: 239mm
  • 200mm dia. Polyurethane. Tread width:  50mm.  Load capacity 800 kg.  Overall height: 239mm
  • 3 day delivery
