Manual Forklift

From: £1,195.00

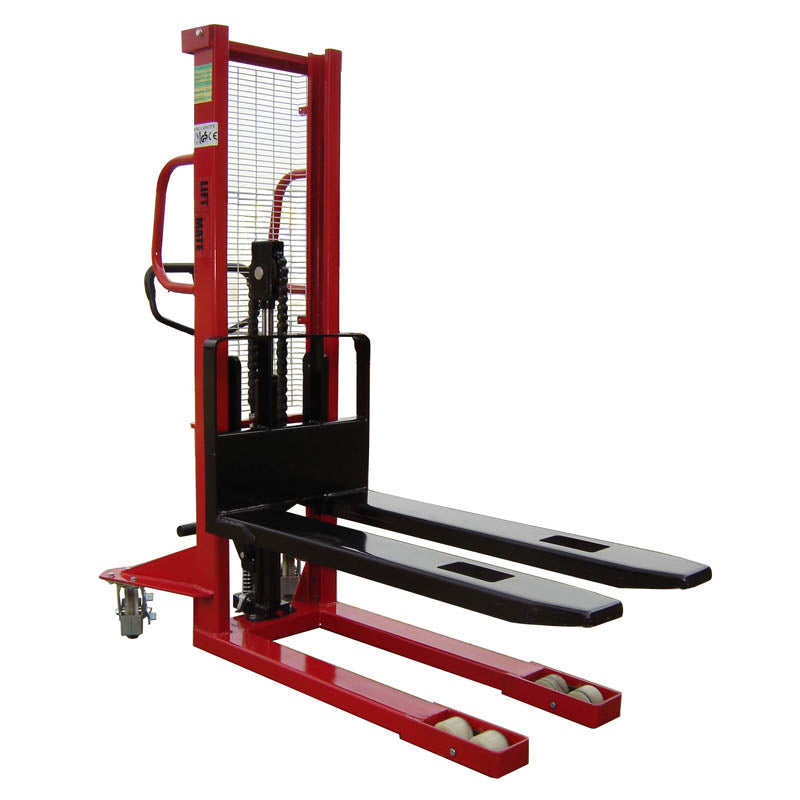

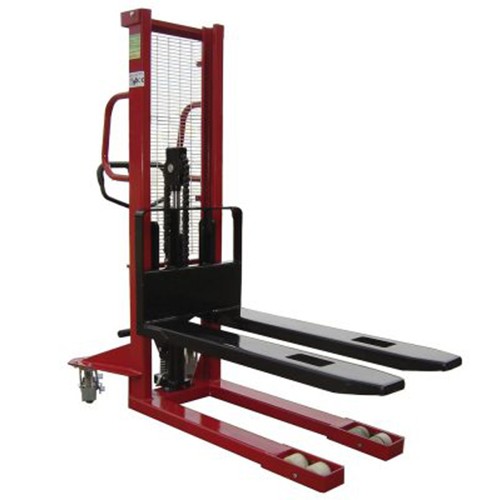

Manual pallet stacker which is ideal for use with euro pallets.  Choice of max. lift heights 1200mm to 3000mm

  • Fixed forks
  • Swivel castor stee wheels
  • Adjustable lowering speed

Product Details

  • This manual forklift is ideal for use with euro pallets
  • Ergonomic pump handle and foot pump – giving you a choice of operation
  • Sturdy, compact and constructed from robust steel profiles
  • Lowering speed of each pallet stacker is fully adjustable
  • Swivel castor steer wheels
  • Safety valve prevents overloading
  • Lift: Manual
  • Choice of 5 models:
  • 1000 kg capacity.  Max. lift height:  1200mm.  Forks 1150mm long x 550mm wide.
  • 1000 kg capacity.  Max. lift height:  1600mm.  Forks 1150mm long x 550mm wide.
  • 1000 kg capacity.  Max. lift height:  2500mm.  Forks 1150mm long x 580mm wide.
  • 1000 kg capacity.  Max. lift height:  3000mm.  Forks 1150mm long x 580mm wide.
  • 1500 kg capacity.  Max. lift height:  1600mm.  Forks 1150mm long x 550mm wide.
Technical Specifications:
Model (ESKI 1000/-) 1200 1600 2500 3000
Capacity 1000kg
Load Centre 600 mm
Max. Lift Height 1200mm 1600mm 2500mm 3000mm
Lowered Fork Height 85 mm
Fork Length 1150 mm
Width over Forks 550mm 550mm 580mm 580mm
Overall Length 1640 mm
Overall width 740mm 740mm 840mm 840mm
Overall Closed Height 1720mm 2080mm 1840mm 2080mm
Mast Type Single Single Duplex Duplex
Wheels Nylon ø 150 / 80 mm
Approx. Weight 210kg 230kg 276kg 307kg

To view our forklift drum tilters click here.
