SKU: ESCMSC20H

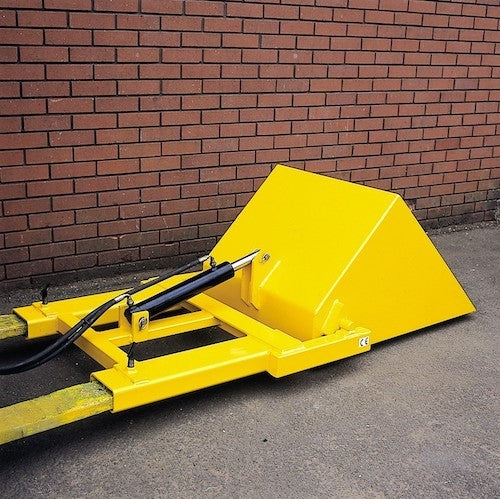

Long Reach Bucket Scoop - Hydraulic

£2,395.00 ex VAT
Free Delivery on all orders over £100+VAT within
U.K. Mainland (excludes Scottish Highlands & Conveyors)

Long reach hydraulic bucket scoop which is multi-purpose and ideal for loading into small vans and charging hoppers.  The long reach allows the discharge of materials into the centre of a lorry where the small tipping arc makes the bucket perfect for discharging where headroom is confined.

  • 3 volume capacities available:  0.2 cu.m, 0.4 cu.m or 0.5 cu.m
  • Max. fork size:  125 x 50mm
  • Fork spread:  886mm
Read Full Description
If you can’t find it, we’ll make it for you!

If you require more information on this product or need a product customising to your exact requirements then call us on the number below or click on the enquiry button to request a call.

0333 005 0323
Request a Call

Delivery and Shipping

Free Delivery on all orders over £100+VAT within U.K. Mainland (excluding Scottish Highlands and Northern Ireland). This excludes all Conveyor products which incur a delivery charge.

For all orders under £100 + VAT, there is a set charge of £10 + VAT.

For delivery outside the UK mainland or for Conveyor orders, please ring us on 0333 005 0323 to quote.

Some products are available on next day or overnight delivery, please ring us to enquire and we will do our best to get the order shipped out as soon as possible.

-

Product Details

A multi purpose long reach hydraulic bucket scoop. The bucket is positioned forward of the truck forks giving long reach capabilities and is ideal for reaching into the backs of lorries and vans.

  • Available in 3 different volume capacities:-
  • 0.2 cu.m. Min. truck capacity: 1500 kg. Bucket width: 800mm. Bucket height: 505mm. Centre of gravity min: 750mm. Centre of gravity max: 1080mm. Weight: 190 kg
  • 0.4 cu.m. Min. truck capacity: 3000 kg. Bucket width: 1000mm. Bucket height: 608mm. Centre of gravity min: 790mm. Centre of gravity max: 1120mm. Weight: 205 kg
  • 0.5 cu.m. Min. truck capacity: 3000 kg. Bucket width: 1250mm. Bucket height: 608mm. Centre of gravity min: 820mm. Centre of gravity max: 1150mm. Weight: 350 kg
  • Max. fork size: 125 x 50mm
  • Fork spread: 886mm
  • Shallow tipping arc allows for tipping in confined headroom
  • Attached and secured with zinc twist screws which ensures safe attachment to truck
  • CE marked and supplied with a certificate of conformity
