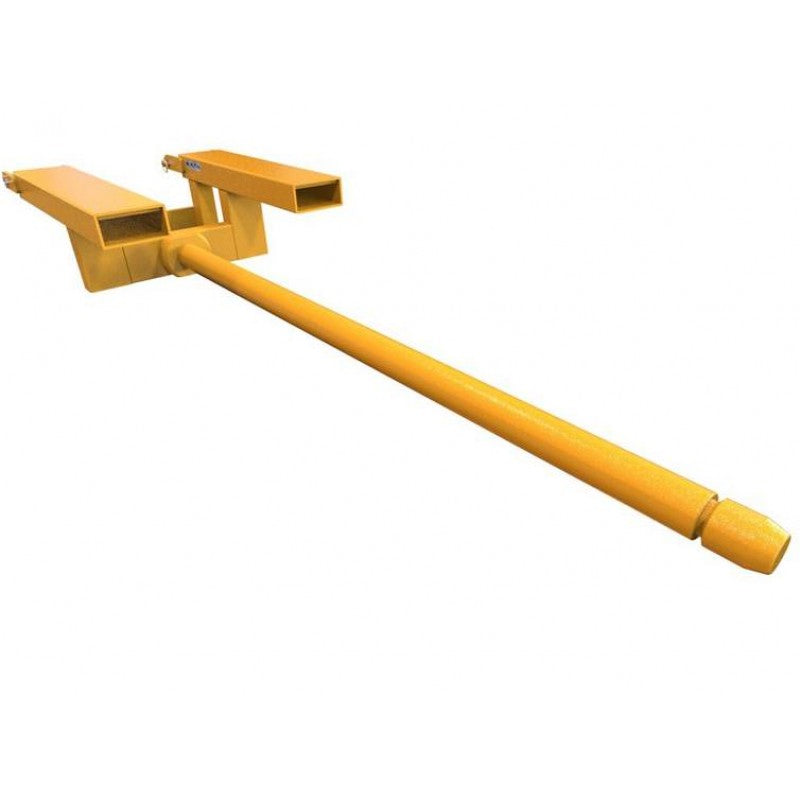

Underslung Fork Mounted Boom

• The forklift boom is manufactured from high grade EN19T steel
• Perfect solution when you need to utilise your forklift truck for handling rolls or coiled products.
• The fork-mounted design of the forklift boom allows the truck operator quick changeover from pallet handling to roll handling
• We manufacture our forklift booms to order to ensure the roll diameter and under-slung nature of the design do not cause any conflict with your forklift truck forks. This way you can be assured that the roll you are handling will be lifted utilising the full length of the forklift pole.
• Safety retaining pins to ensure the underslung forklift boom is safely and securely connected to your forklift fork
• CE marked and supplied with Certificate of Conformity
• Max. fork size: 140 x 50mm
• Pole dia.: 50mm, 65mm, 70mm, 75mm and 90mm
• Length of Pole : 1525mm, 1525mm, 1525mm and 1525mm
• Load centre : 1m,1m,1m,1m and 1m
• Safe Working Load : 290kg, 600kg, 750kg, 1000kg and 1500kg

N.B. When ordering please check:

1) Length of roll to be lifted

2) Weight of roll

3) Inside core dia. of roll

4) Overall dia. of the roll

If you need any other specifications please contact us and we will be happy to help.
