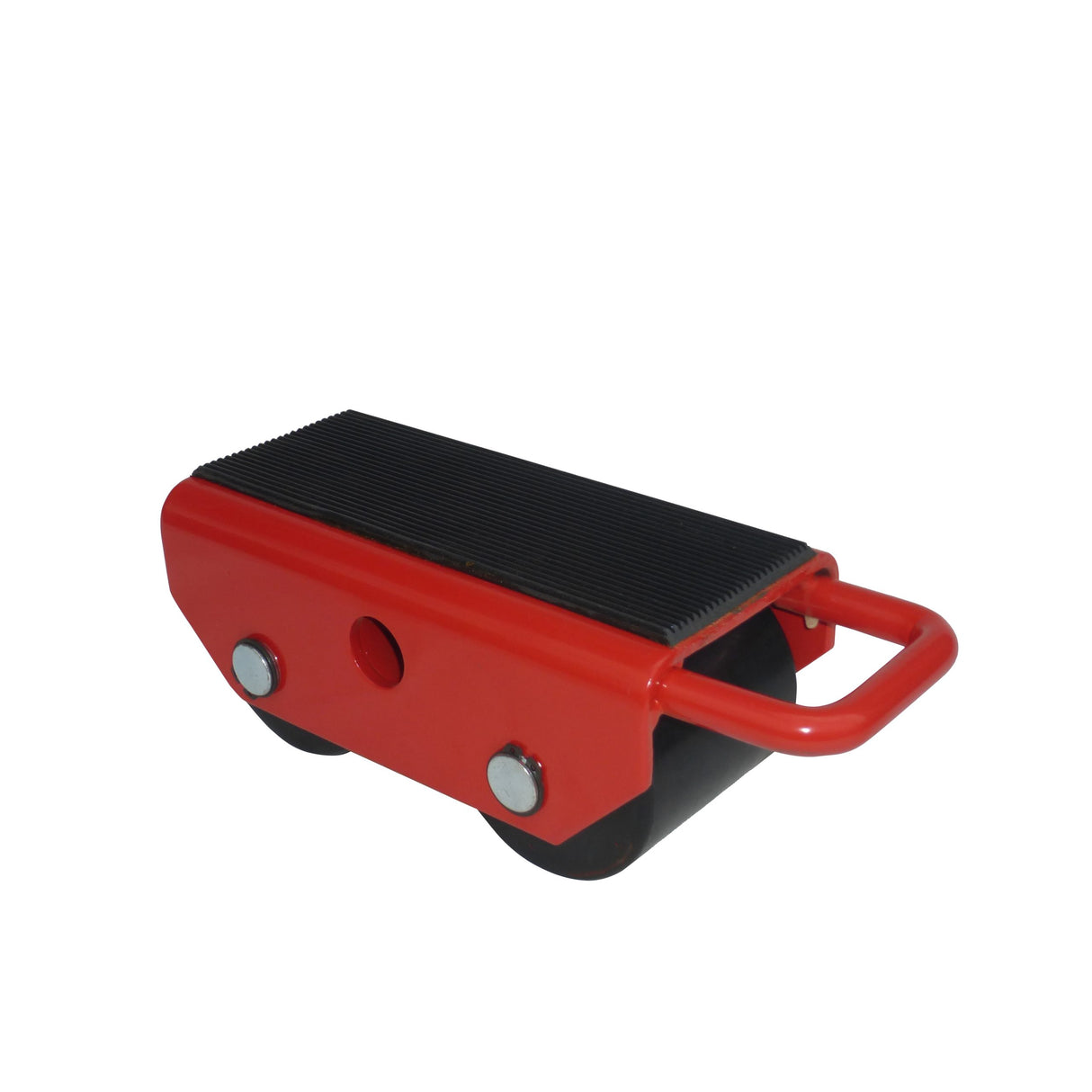

Machine Skate with Fixed or Steerable Wheels

Machine skates with fixed wheels in a choice of 5 capacities.

• The skates are maintenance-free with sealed bearings
• They are fitted with handles for ease of carrying and positioning
• The top of the skate has an anti-slip rubber mat for stability and protection of loads
• The loads can be raised using either a roller crowbar or a hydraulic jack
• Abrasion-resistant nylon wheels

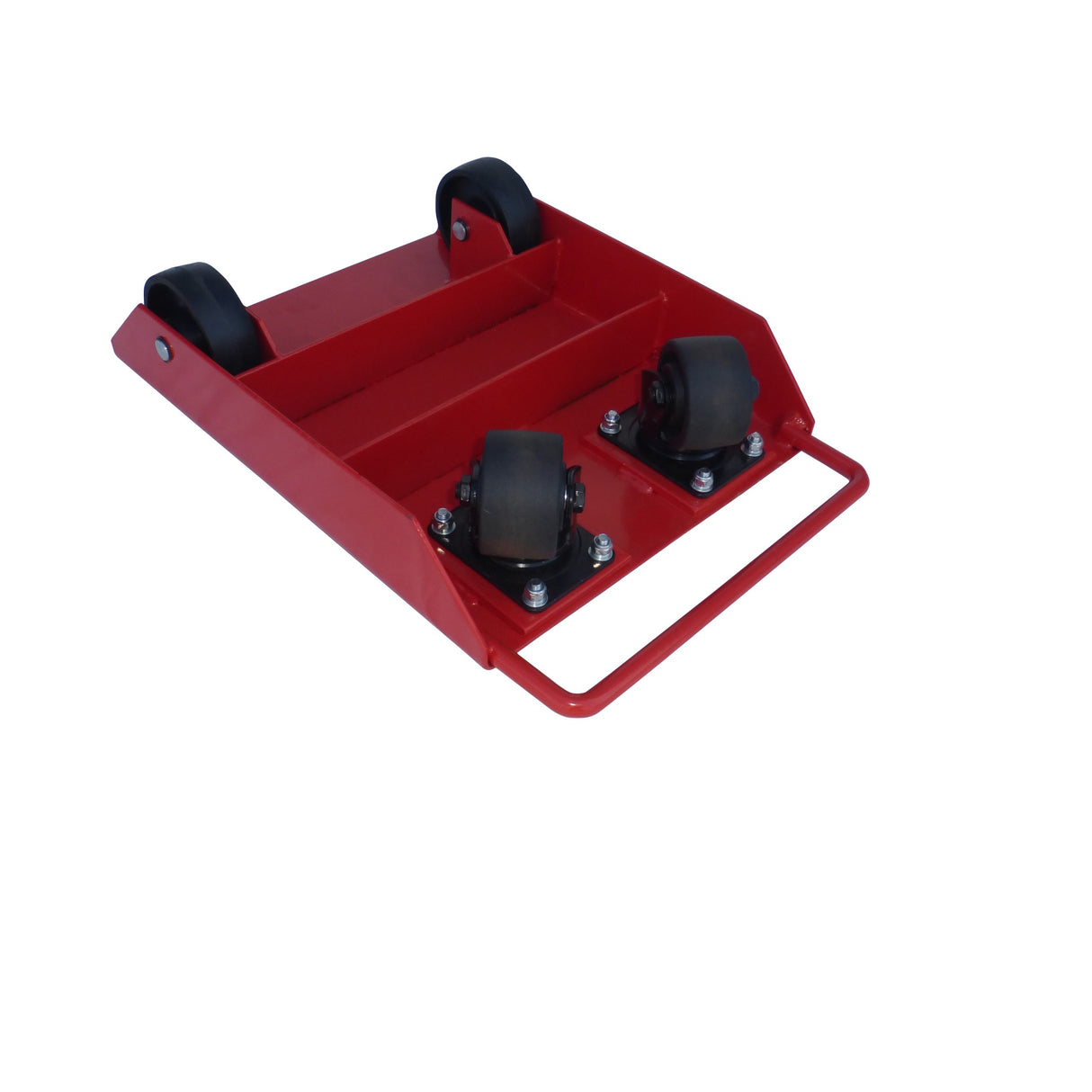

Machine Skates with 2 Fixed and 2 Steerable Wheels:

• Capacity: 1000 kgs.
• Number of wheels: 4
• Swivel wheel dia 75mm x 46mm wide
• Fixed wheel dia. 100mm x 35mm wide
• Dimensions: 430mm long x 340mm wide x 120mm high
• Weight: 13 kgs.

Machine Skates with 4 Swivel Wheels:

• Capacity: 1000 kgs.
• Number of wheels: 4
• Nylon Swivel wheels dia 75mm x 46mm wide
• Dimensions: 430mm long x 340mm wide x 120mm high
• Weight: 14 kgs.

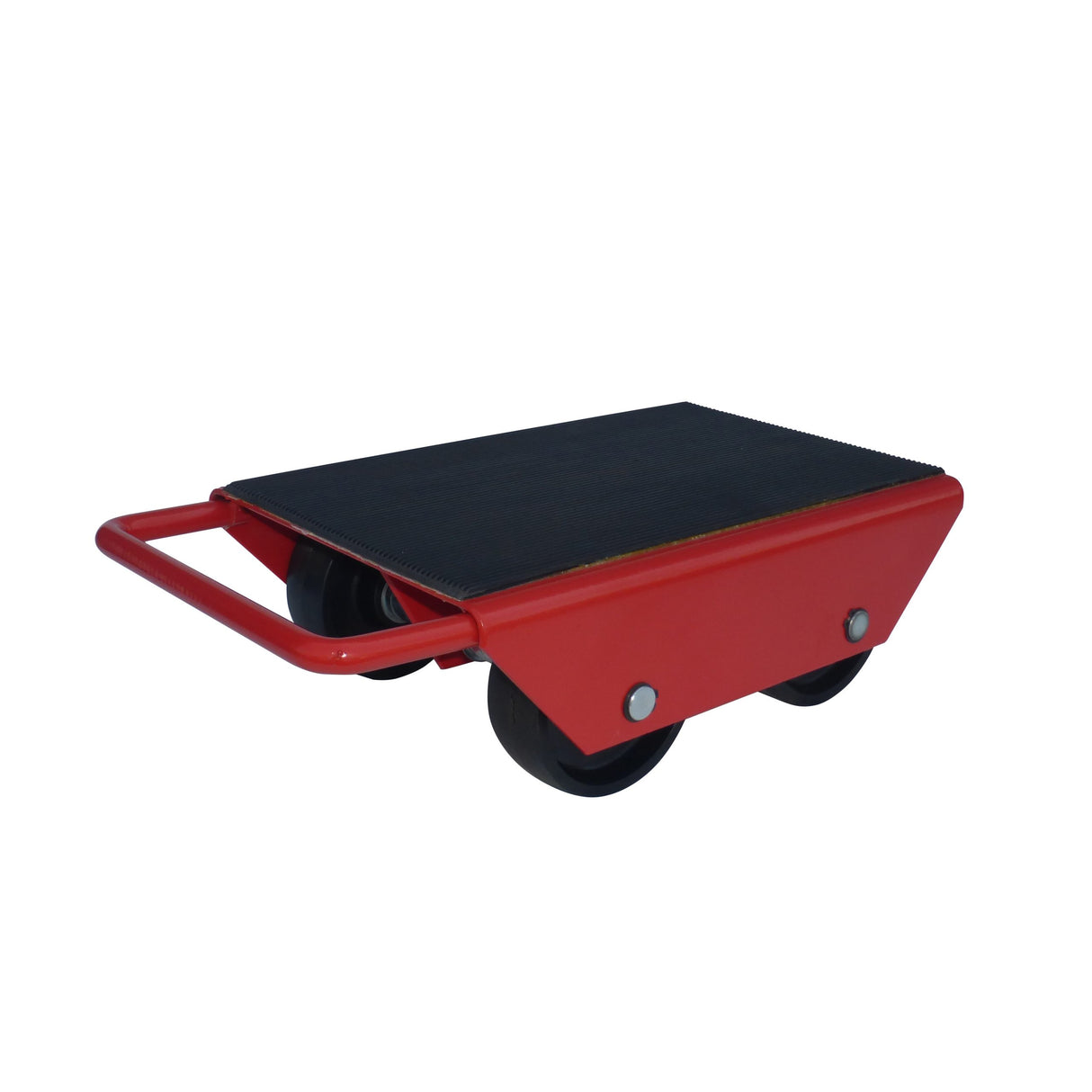

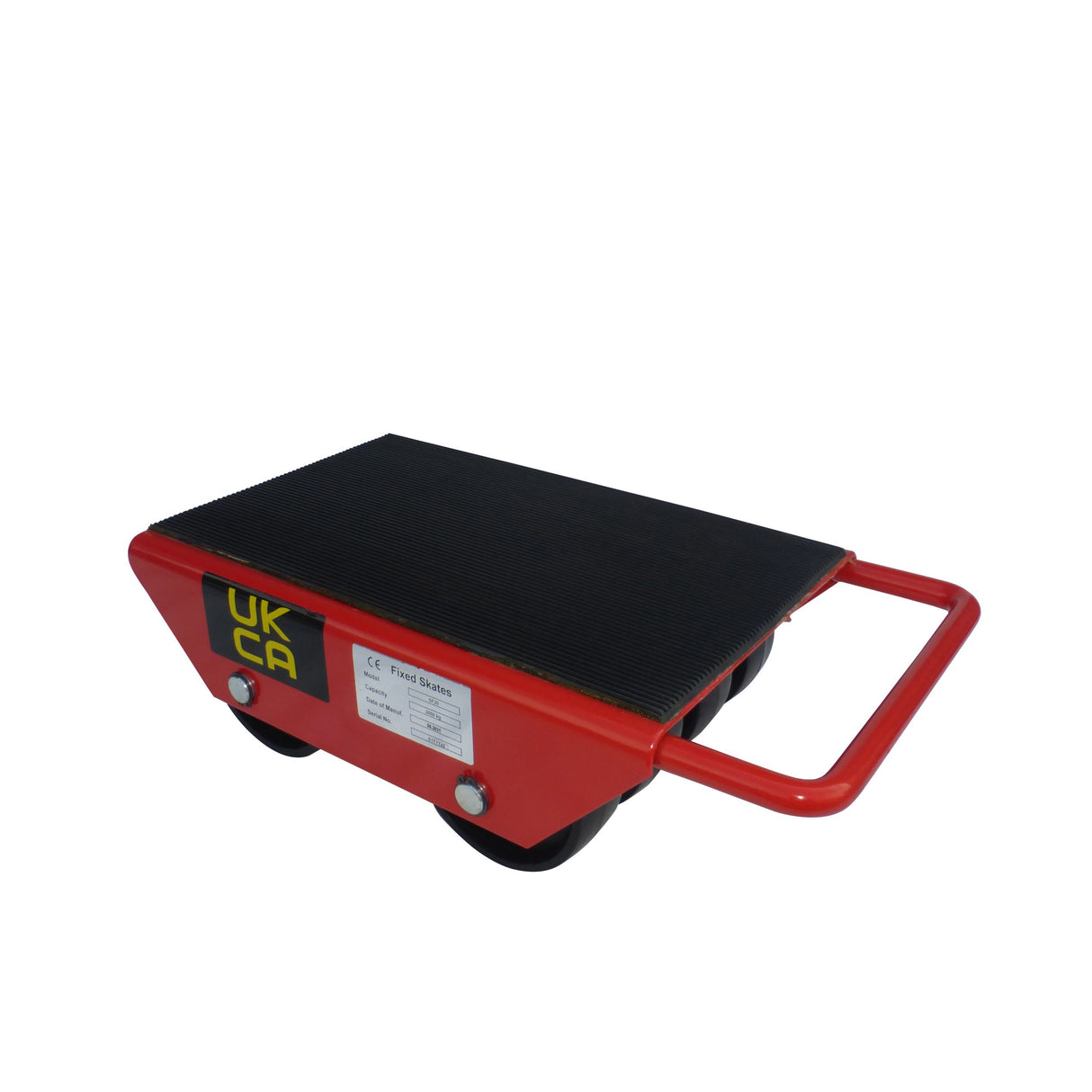

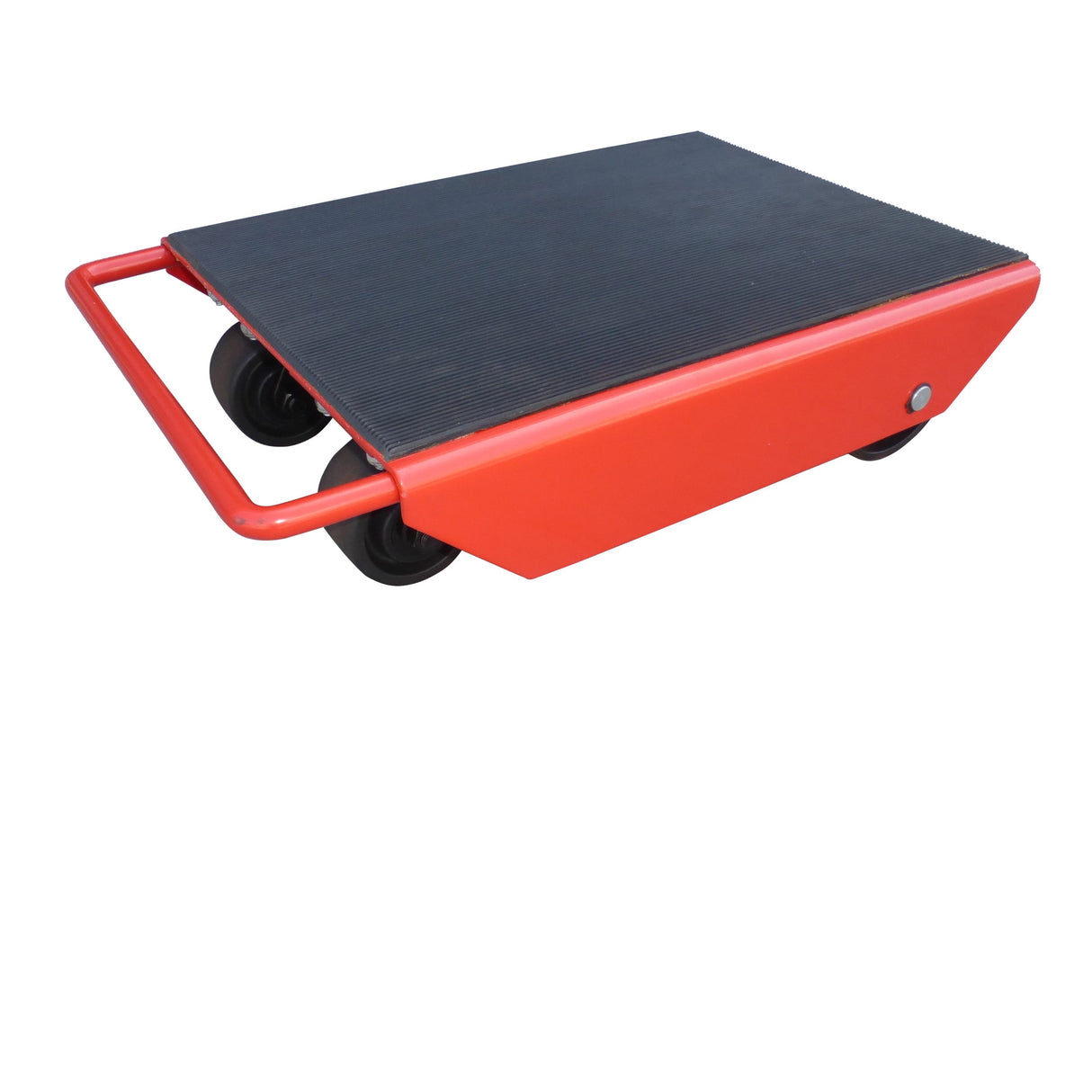

Machine Skates with Fixed Wheels:-

1000 kgs. Capacity

• No. of wheels - 4
• Wheel diameter 100 mm x 35 mm wide
• Dimensions - 330 mm long x 220 mm wide x 120 mm high
• Weight: 7 kgs.

2000 kgs Capacity

• No. of wheels - 8
• Wheel diameter 100 mm x 35 mm wide nylon
• Dimensions - 330 mm long x 220 mm wide x 120 mm high
• Weight: 8 kgs.

2500 kgs Capacity

• No. of wheels - 2
• Wheel diameter 85 mm x 90 mm wide nylon
• Dimensions - 210 mm long x 120 mm wide x 105 mm high
• Weight: 4 kgs.

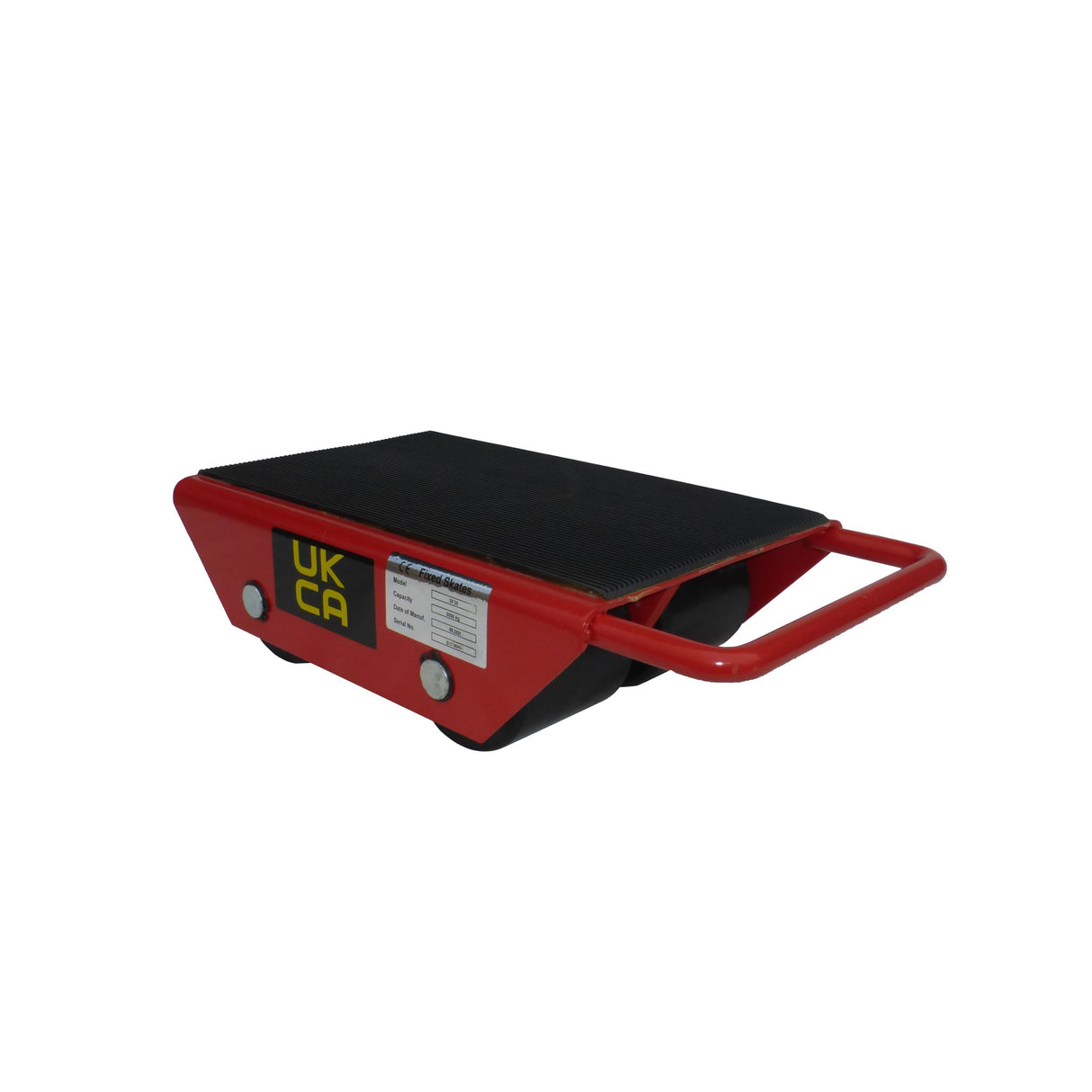

3000 kgs Capacity

• No. of wheels - 4
• Wheel diameter 85 mm x 85 mm wide nylon
• Dimensions - 330 mm long x 300 mm wide x 120 mm high
• Weight: 9.5 kgs.

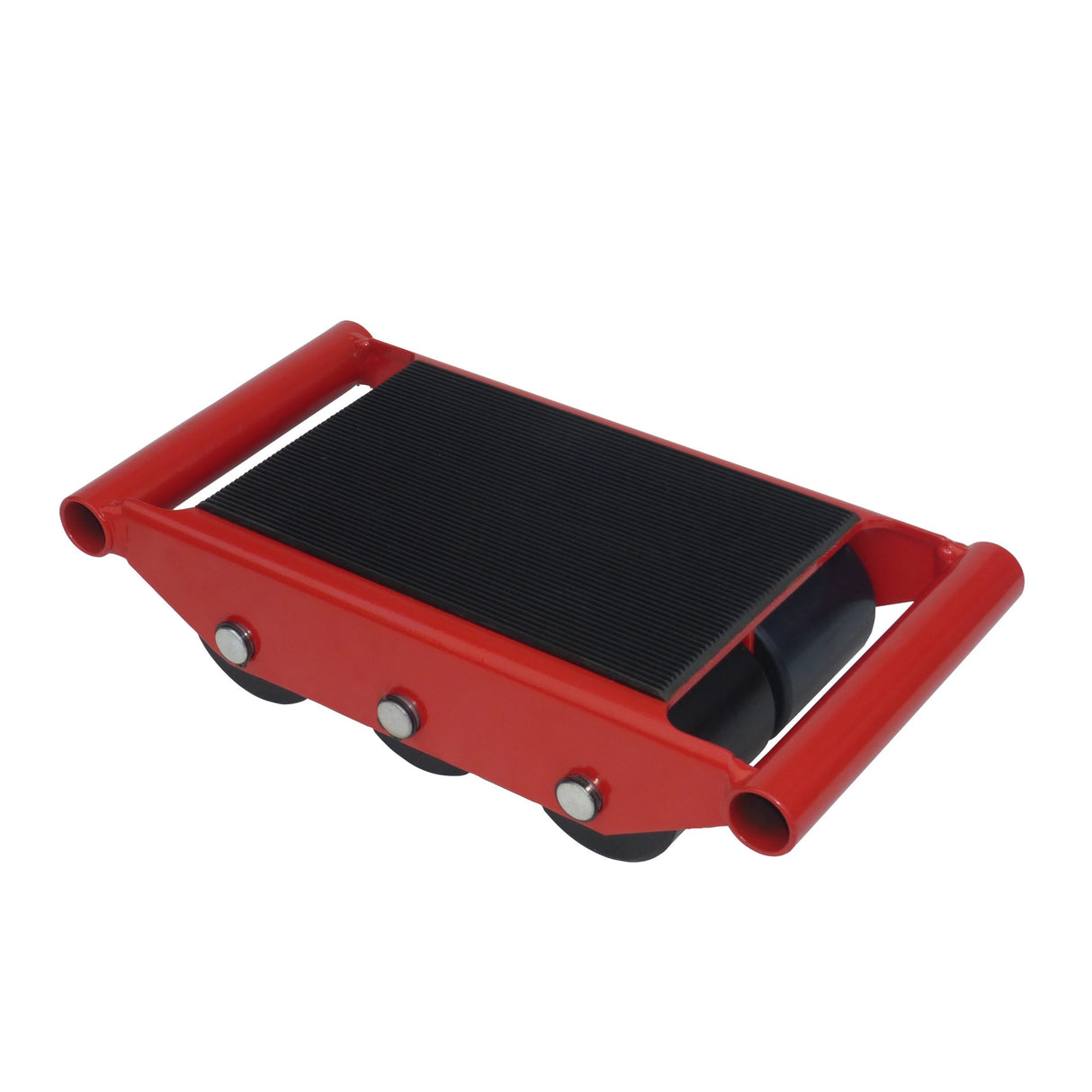

6000 kgs Capacity

• No. of wheels - 6
• Wheel diameter 85 mm x 90 mm wide nylon
• Dimensions - 260 mm long x 230 mm wide x 105 mm high
• Weight: 12 kgs.

If you need something with a higher capacity have a look at our extra heavy capacity skates which are up to a 60 tonne capacity. We are able to help with any requirements you may have. Please phone 0333 005 0323 and ask to speak to one of our engineers.
